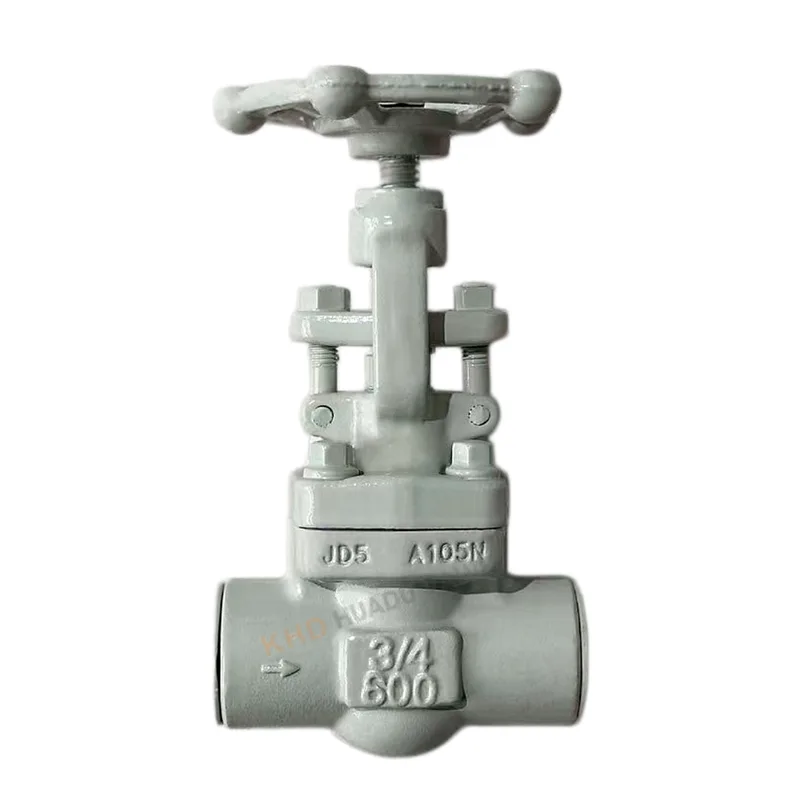

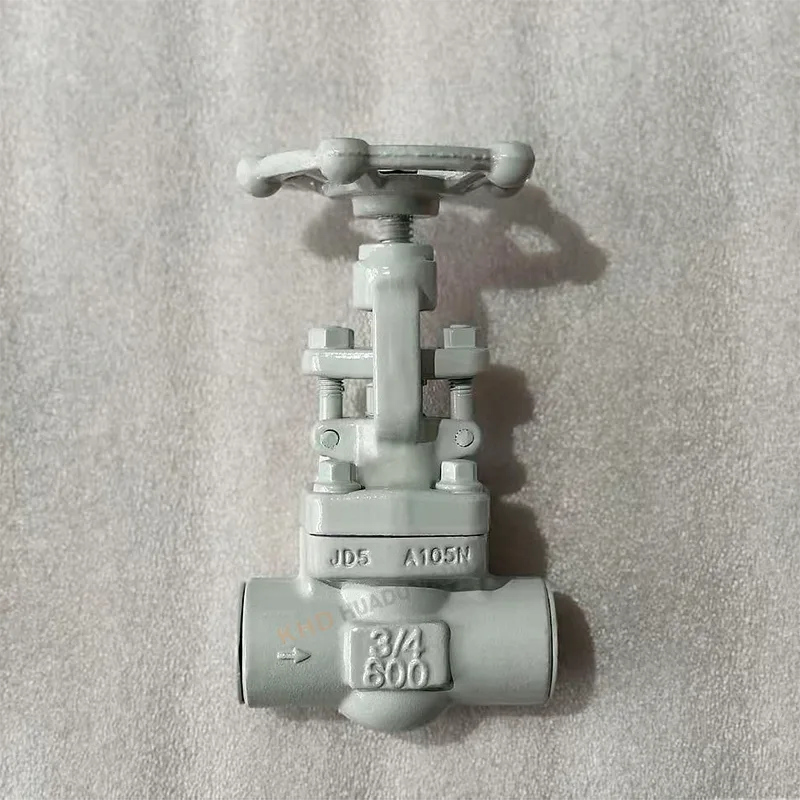

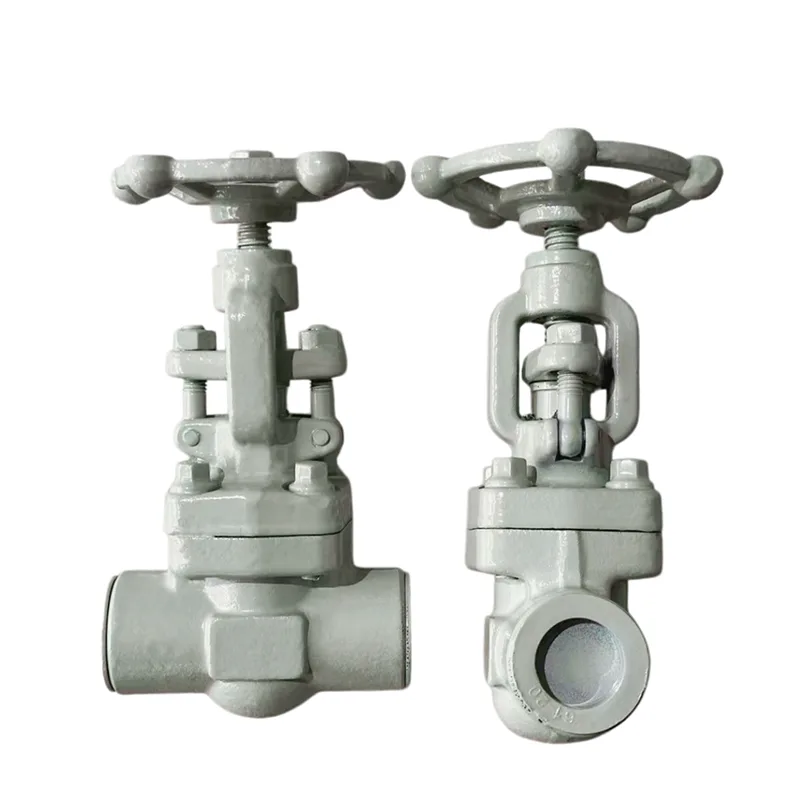

I-Socket-welded Forged Gate Valve

Ivalve yesango enesokethi ephothiweyo yivalve yeshishini elinoxinzelelo oluphezulu eyenzelwe ukuvala imibhobho kunye nolawulo lokuhamba. Eyenziwe yi-Huadu Valve Group, isebenzisa i-A105N yentsimbi ye-carbon steel kwaye ifanelekile kwiimeko zokusebenza ze-Class 600. Isetyenziswa ngokubanzi kwiinkqubo zepetroleum, iikhemikhali, amandla, kunye noxinzelelo oluphezulu lwe-steam apho ukhuseleko kunye nokusebenza kokutywinwa kubaluleke kakhulu.

IMathiriyeli ekrwada kunye neeNzuzo zoLwakhiwo

Umgangatho ophezulu weNsimbi eyakhiweyo

Ivalve yesango eyenziwe ngesocket-welded yenziwe ngentsimbi yekhabhoni eyi-A105N, iqinisekisa:

Amandla aphezulu kunye nokuxinana

Ukuchasana kwempembelelo egqwesileyo

Akukho ziphene zokuphosa ezifana nemingxuma okanye imingxuma yesanti

Ukuhlolwa kwezinto ngokungqongqo

Ibhetshi nganye yemathiriyeli ekrwada ivavanywa kusetyenziswa uhlalutyo lwe-spectral ukuqinisekisa:

Ukwakhiwa kweekhemikhali ezichanekileyo

Akukho mathiriyeli esetyenzisiweyo okanye engekho mgangathweni

Ukusebenza komatshini okuzinzileyo

IiNzuzo zoQhagamshelwano lwe-Socket-Weld

Uhlobo loqhagamshelo lwevalvu yesango elidityanisiweyo elinesokethi lubonelela:

Ukusebenza kokutywina okunamandla

Kungcono ukumelana noxinzelelo oluphezulu kuneeflange

Ukunciphisa umngcipheko wokuvuza kwinkqubo ebalulekileyo

IiNgcaciso zobuGcisa

IiParameters ezisemgangathweni

Ubungakanani: DN15-DN50 (isitokhwe esiqhelekileyo)

Inqanaba loxinzelelo: Iklasi ye-300 / iKlasi ye-600

Izinto eziphathekayo: I-A105N yentsimbi yekhabhoni eyenziwe ngentsimbi

Uhlobo: Ivalve yesango elenziwe ngesokethi

Uluhlu lobushushu: -29°C ukuya ku-570°C

Inkqubo yokuVelisa

Ivalve yesango eyenziwe ngesocket-welding iveliswa ngale ndlela:

Integral die forging

Unyango lobushushu (inkqubo eqhelekileyo)

CNC ukuchaneka machining

Iimpawu zokuSebenza

Ukuchaneka komphezulu wokutywinwa kwenqanaba leMicron

Ukusebenza kokutywina okungavuziyo

Ukusebenza okungenamagingxigingxi ngaphandle kokudibanisa

Ifanelekile kwiinkqubo zobushushu obuphezulu

IiNdawo zokuSebenza

Ishishini leoli negesi

Ivalve yesango elenziwe ngesocket isetyenziswa kakhulu apha:

Imibhobho yokucoca

Iinkqubo zokuhambisa i-oyile

Izibonelelo zegesi yendalo

Ishishini leMichiza

Imibhobho yeekhemikhali ezinoxinzelelo oluphezulu

Iinkqubo zokulawula ulwelo olunokonakala

Izixokelelwano zereactor/eziphumayo

Ishishini laMandla

Imibhobho yomphunga

Iinkqubo zamandla obushushu

Imibhobho yecondensate

Ukusetyenziswa ngokubanzi kwimizi-mveliso

Imibhobho yoxinzelelo oluphezulu oluncinci

Iinkqubo zokwahlulwa kwezixhobo

Ukhuseleko lokuvala izicelo

Iimpawu eziphambili

FAQ

Yintoni uxhulumaniso lwe-socket-weld?

Uqhagamshelo lwe-socket-weld yindlela yokudibanisa umbhobho apho umbhobho ufakwe kwi-socket edibeneyo kwaye emva koko idityaniswe ngaphandle. Isetyenziswa ngokuqhelekileyo kwiinkqubo zoxinzelelo oluphezulu, ezincinci-diameter.

Kwimeko yevalve yesango ephothiweyo enesokethi, umbhobho ufakwa kwisokethi yokuphela kwevalve kwaye udityaniswe ukuze wenze umdibaniso owomeleleyo, ongavuziyo.

Iimpawu eziphambili zoqhagamshelwano lwe-socket-weld

Amandla aphezulu kunye nokumelana noxinzelelo

Ukusebenza kokutywinwa okugqwesileyo

Ifanelekile kwi-DN15-DN50 imibhobho encinci

Ukunciphisa umngcipheko wokuvuza xa kuthelekiswa namalungu anemisonto

Ixhaphakile kwiinkqubo ze-oyile, igesi, kunye nomphunga

Ngaba iivalvu ze-socket-weld kufuneka ziqhawulwe phambi kokuba zitshiswe?

Ewe, ngokupheleleyo. Ngaphambi kokufaka i-valve yesango elihlanganisiweyo eline-socket-welded, ivalve akufanele idityaniswe ngokuyinxenye ngexesha le-welding.

Ukwenza ngokufanelekileyo ukufakela:

Susa izinto zangaphakathi ukuba kunokwenzeka (okanye qinisekisa ukuba ivalve ivuleke ngokupheleleyo)

Faka umbhobho ngokupheleleyo kwisokethi

Gcina isithuba esincinci sokwandisa (~1.5–2 mm)

Yenza i-welding kuphela kwi-joint yangaphandle

Vumela ukupholisa phambi kokuba usebenze ivelufa

Amanqaku abalulekileyo:

Kuphephe ukufudumeza umzimba wevalvu

Thintela i-welding slag ekungeneni kwi-valve cavity

Qinisekisa ulungelelwaniso oluchanekileyo phambi kwe-welding

Ukuwelda okungafanelekanga kunokonakalisa iindawo zokutywina kunye nokunciphisa ubomi bevalvu.

Yintoni umahluko phakathi kwe-OS&Y kunye nebhonethi ebhontiweyo?

Ezi ziyilo ezimbini ezahlukeneyo zesakhiwo ezisetyenziswa kwiivalvu zesango.

I-OS&Y (Isikruru sangaphandle kunye nedyokhwe)

Umsonto wesiqu ungaphandle komzimba wevalvu

Ukushukuma kwesikhondo esibonakalayo kubonisa isimo esivulekileyo/esivaliweyo

Ukugcinwa lula kunye nokubeka iliso ekusebenzeni

Okuqhelekileyo ekukhuseleni umlilo kunye neenkqubo zoshishino

Ibhonethi eBolted

Ibhonethi iqhagamshelwe kumzimba wevalvu kusetyenziswa iibholithi

Uyilo lwesikhondo lwangaphakathi (alubonakali ngaphandle)

Ubume obuqinileyo

Isetyenziswa ngokubanzi kwizicelo zoshishino jikelele

Uthelekiso olulula:

I-OS&Y = ukubonakala kwangaphandle + esweni umsebenzi olula

Ibhonethi ebotshiweyo = i-compact + i-cost-effective structure

Zombini ezi ntlobo zingasetyenziswa kwi-socket-welded valve yesango elidibeneyo ngokuxhomekeke kwiimfuno zeprojekthi.
