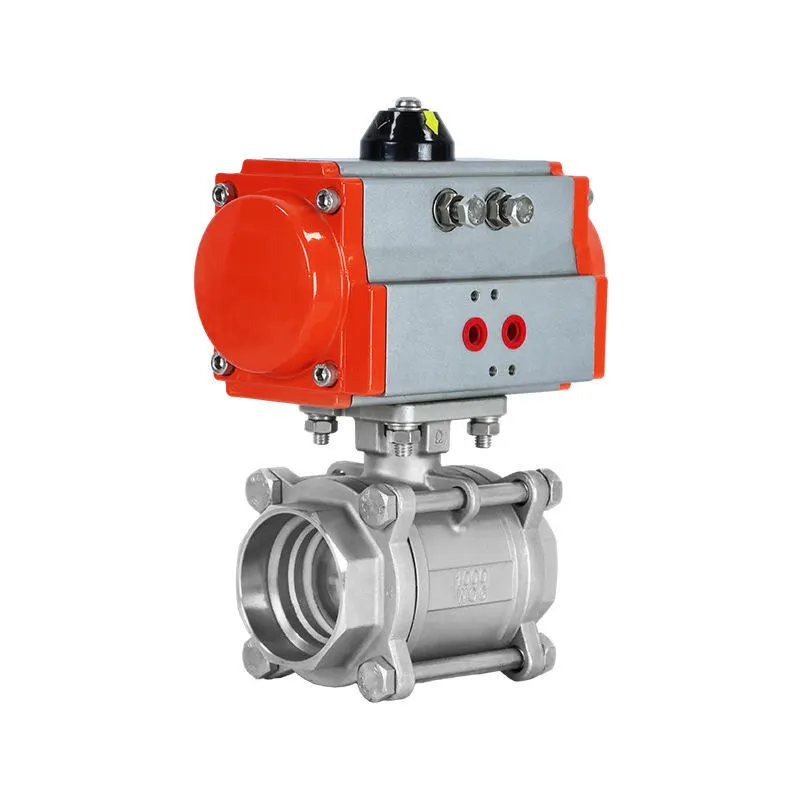

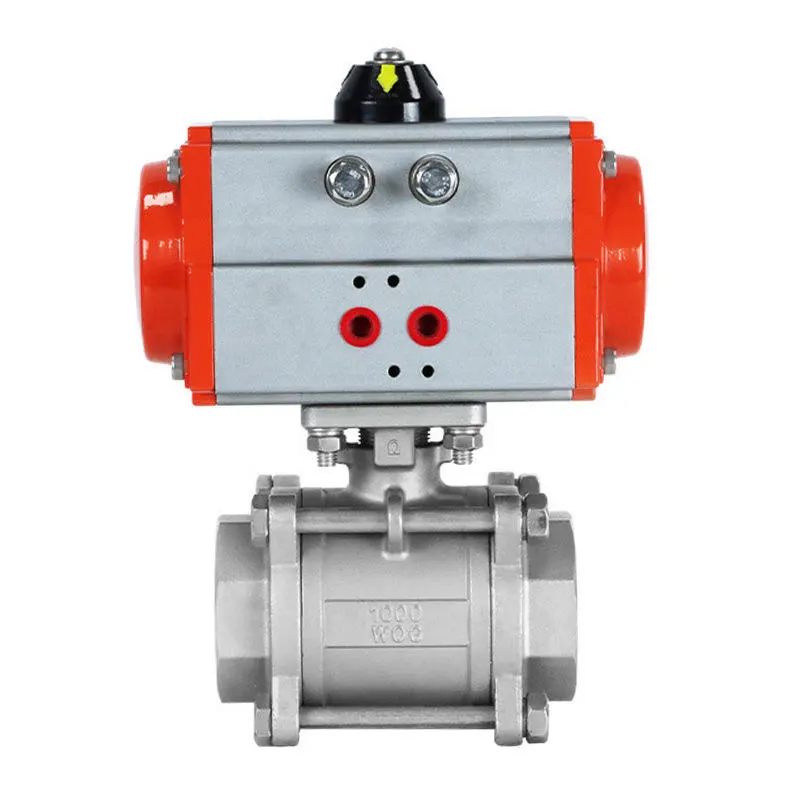

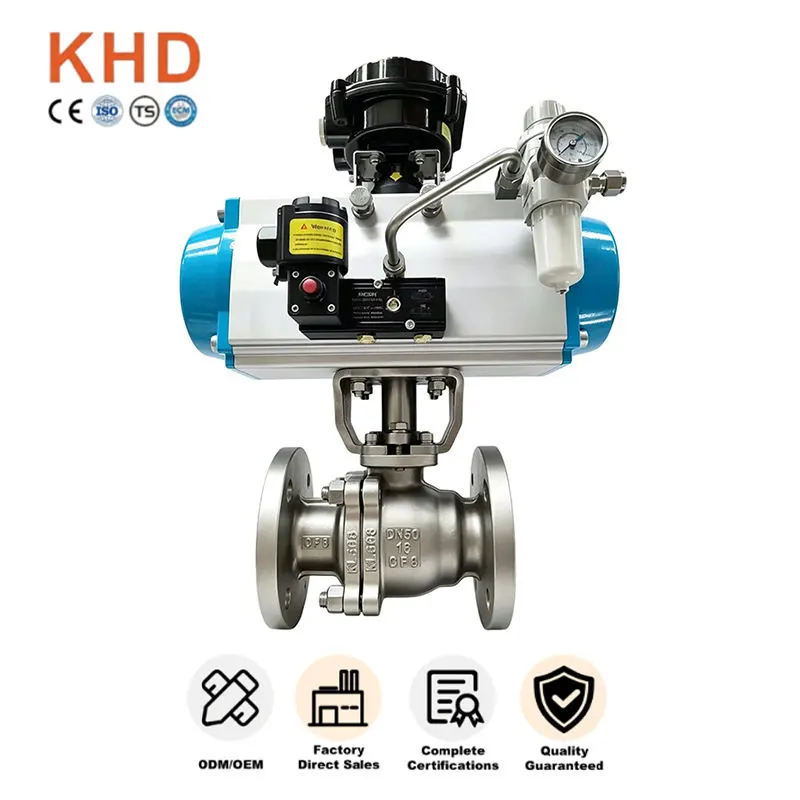

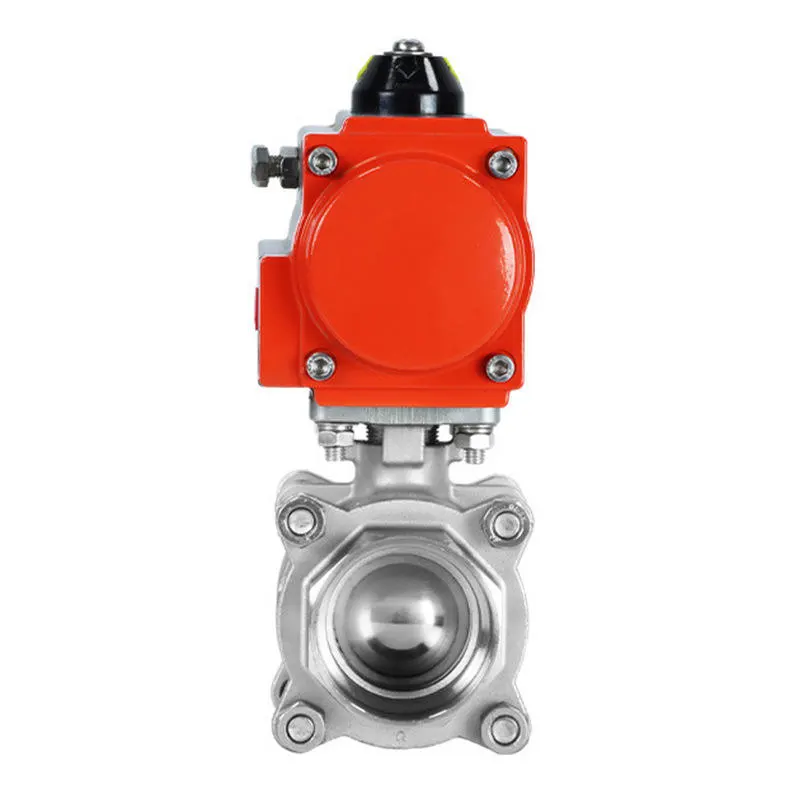

Pneumatic Stainless Steel Flanged Ball Valve

I-Pneumatic Stainless Steel Flanged Ball Valve yivalve yoshishino oluzenzekelayo eyenzelwe ukulawula ukuhamba kwemibhobho kunye nokuvalwa. Yenziwe yi-Huadu Valve Group, isebenzisa i-SS304 / SS316 impahla yensimbi engenasici kwaye ifanelekele iimeko zokusebenza ezizenzekelayo kwimizi-mveliso.

Isetyenziswa ngokubanzi kwimibhobho yokuncedisa iikhemikhali, amaziko okucoca amanzi, imigca yegesi yeoli kunye neenkqubo zokuvelisa ngokuzenzekelayo apho ukulawulwa ngokuzenzekelayo, ukuxhathisa ukubola kunye nokhuseleko lokusebenza kubaluleke kakhulu.

I-Pneumatic Stainless Steel Flanged Ball Valve iqinisekisa ukusebenza okuzinzile kunye nobomi benkonzo ende kwiindawo ezifunayo zoshishino.

Iimpawu eziphambili

IMathiriyeli ekrwada kunye neeNzuzo zoLwakhiwo

Umgangatho oPhezulu weStainless Steel valve Body

I-Pneumatic Stainless Steel Flanged Ball Valve yenziwe nge-SS304 yokwenyani kunye ne-SS316 imathiriyeli yentsimbi, iqinisekisa:

-Ukugqwala okuphezulu, i-oxidation kunye nokumelana nomhlwa kwimithombo yeendaba ezifumileyo, ezinetyuwa kunye nezonakalise kancinci

-Kuphephe ukuqokeleleka komhlwa, ukumila kwesikali kunye nongcoliseko oluphakathi phantsi kwenkonzo yexesha elide

-I-standard casting & forging technology isusa imingxuma yesanti yangaphakathi kunye neziphene zomoya

-Isakhiwo sokumelana noxinzelelo oluqinileyo, i-anti deformation phantsi kokuqhuba okuqhubekayo kunye nokuhamba ngebhayisikile rhoqo

-Yehlisa umngcipheko wokungaphumeleli ongalindelekanga kunye nokunciphisa iindleko zokubuyisela umsebenzisi wokugqibela

Ukuhlolwa kwezinto ngokungqongqo

Ibhetshi nganye yemathiriyeli ekrwada iyavavanywa ukuqinisekisa:

-Ukwakheka kweekhemikhali ezichanekileyo kumabakala e-SS304 / SS316

-Akukho mathiriyeli esetyenzisiweyo okanye engekho mgangathweni

-Ukusebenza komatshini okuzinzileyo kwiimeko ezinzima zentsimi

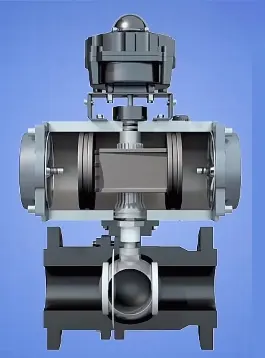

I-Pneumatic Actuator Drive Benefits

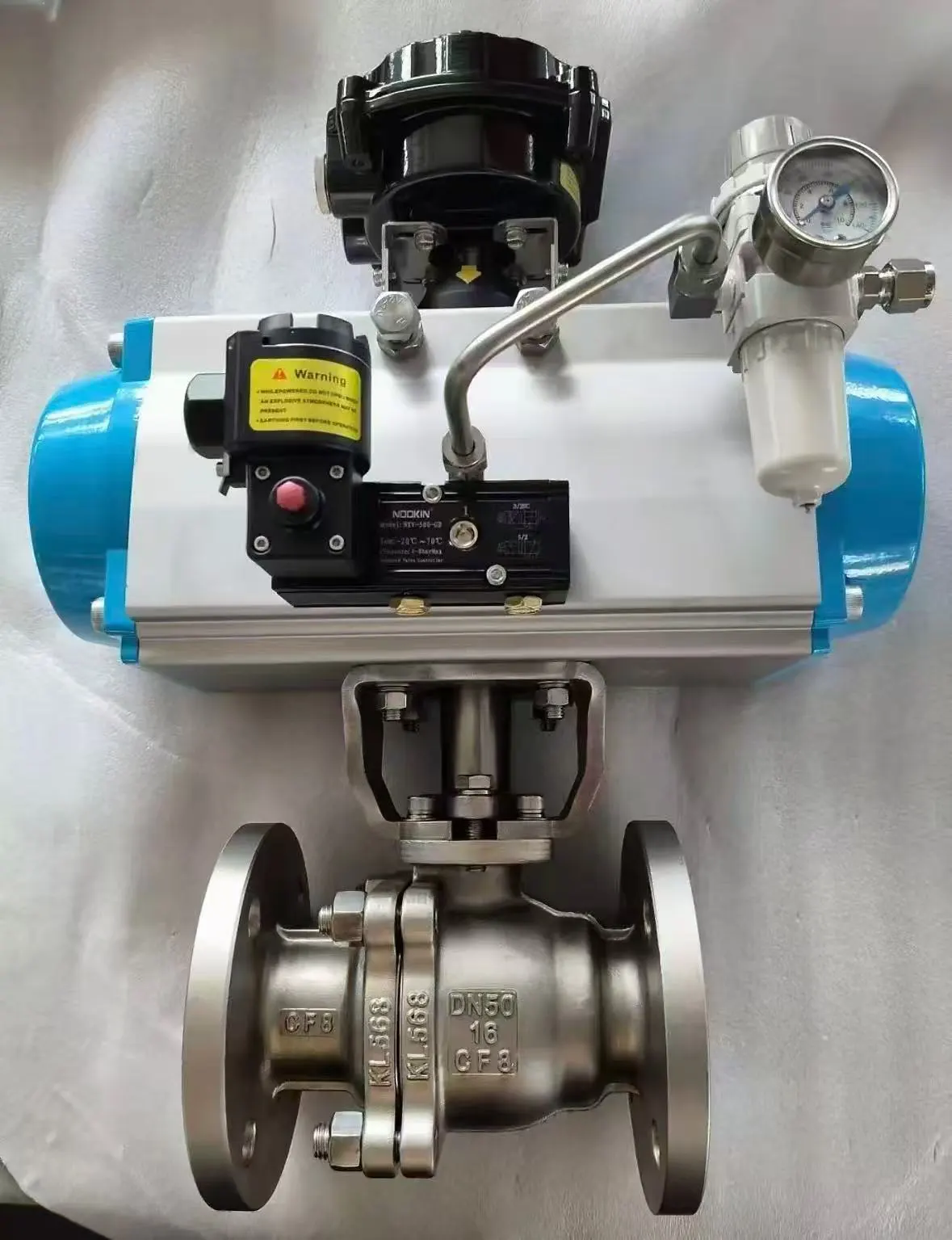

I-Pneumatic Stainless Steel Flanged Ball Valve ixhotyiswe ngepremiyamu ye-pneumatic actuator, izisa ezi zinto zibalulekileyo:

-Umoya oqhutywa yi-90-degree on-off action, akukho msebenzi wezandla ofunekayo

-I-valve ye-solenoid exhasayo, ukutshintshwa komda kunye ne-PLC yokudibanisa kulawulo oluzenzekelayo olukude

- Ifanelekile ukuphakama okuphezulu, iworkshop evaliweyo kunye neendawo ezinobungozi obuphezulu beekhemikhali ukuphepha iingozi zokhuseleko ngesandla

-Intsebenzo ebuthathaka kunye nozinzileyo yokutshintsha, ilungelelaniswe kwimijikelo rhoqo ye-off-off yemigca yemveliso ezenzekelayo

IiNzuzo zokuQhagamshela kweFlange

Umdibaniso osemgangathweni weflange weshishini ubonelela:

-Ukulungiswa okuqinileyo, ukuqina okugqwesileyo kunye noxinzelelo olomeleleyo lokuthwala umthamo wemibhobho yomsebenzi onzima

-Ulungelelwaniso olulula kunye nokudibanisa kunye neeflange zepayipi eziqhelekileyo ngexesha lofakelo lwesiza

-Ukuqhawulwa okufanelekileyo, ukuhlolwa kunye nokugcinwa kuhlengahlengiso lwemibhobho kamva

-Uyilo lwangaphakathi olugcweleyo lunciphisa ukuchasana nokuhamba, lunciphisa ilahleko yoxinzelelo kwaye luqinisekisa ukuhanjiswa okuphakathi

- Ihambelana ngokupheleleyo nemigangatho yemibhobho yemveliso yezizwe ngezizwe

ISakhiwo sokutywina esiLungileyo sobuNgcali

Iinkcukacha zokutywina ezilungiselelwe le valve yebhola ye-pneumatic flanged ihambisa:

-Isihlalo esiphezulu se-PTFE esizithambisayo kunye nepropathi ephantsi yokukhuhlana, ukutshintsha ngaphandle kokukrwela undoqo webhola

-Umphumo ophuculweyo wokutywinwa phantsi koxinzelelo olulinganisiweyo, ukubuyisela ukunxiba okuncinci ukusuka ekusebenzeni kwexesha elide

-Uyilo lwesiqu esichasene nokuvuthululwa kunye nokupakishwa kwamaleko amaninzi, ukuthintela ukukhutshwa kwesikhondo kunye nokuvuza okuncinci kwangaphandle

-Undoqo webhola edadayo egudisiweyo uqonda ukuba kufanelekile kunye nezihlalo ezithembekileyo ezijikelezayo ezimbini ezivaliweyo kulwelo kunye negesi.

Iindlela eziKhethekileyo zoKhuseleko lweActuator

Iinketho ezininzi ze-activator ziyanelisa iimfuno ezahlukeneyo zokhuseleko lwesiza:

-I-actuator ye-pneumatic esebenza kabini: ukuvala ngokukhawuleza kunye nokulungelelaniswa kokuvula kulawulo oluzenzekelayo jikelele

-I-actuator ye-pneumatic ye-Spring back: ukusetwa kwakhona ngokuzenzekelayo kwindawo evulekileyo / evaliweyo ngokupheleleyo ekuphumeni kokunikezelwa komoya, ukuthintela ukuphuphuma okuphakathi kunye nomonakalo wezixhobo zemichiza kunye neentambo zegesi yeoli.

-Izindlu zeAluminiyam eqinile anodized, zikhaphukhaphu, ziyakwazi ukumelana nendawo yokusebenzela enothuli kunye nefumileyo

-I-ISO 5211 iphedi yokuxhoma esemgangathweni ukulungiselela ukuhambelana ngokulula kunye neevalvu ze-solenoid, ukutshintshwa komda kunye neendawo

IiNgcaciso zobuGcisa

IiParameters ezisemgangathweni

Ubungakanani: DN15-DN200 (isitokhwe esiqhelekileyo)

Uxinzelelo loxinzelelo: PN16 / PN25 / PN40/PN64/PN100

Izinto eziphathekayo: I-SS304, i-SS316 insimbi engenasici

Uhlobo: I-Pneumatic Stainless Steel Flanged Ball Valve

Uluhlu lobushushu:-20°C ~ 180°C (ngokuxhomekeke kwizinto zokuhlala)

Inkqubo yokuVelisa

I-Pneumatic Stainless Steel Flanged Ball Valve iveliswa ngale ndlela:

-Intsimbi esemgangathweni yokugalela kunye nokwenza

- Unyango lobushushu kwipropathi yezinto eziphathekayo

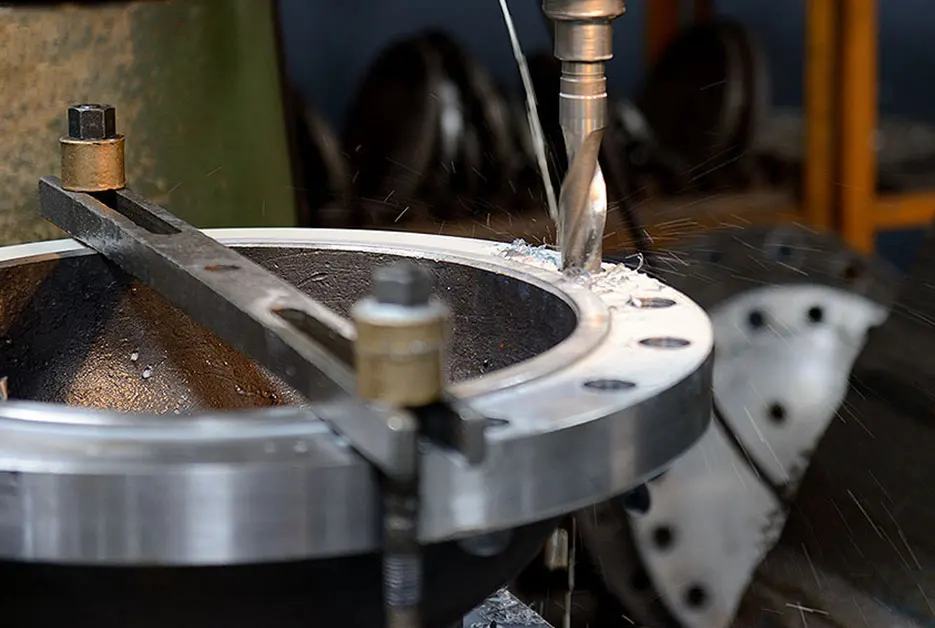

-CNC ukuchaneka machining yokutywina imiphezulu kunye neziphelo flange

- Gqibezela indibano ene-anti-bloout stem kunye ne-actuator ehambelana ne-pneumatic

Iimpawu zokuSebenza

-Ogqwesileyo anti umhlwa kunye nokusebenza anti umhlwa

- Uyilo olugcweleyo lokumelana nokuhamba okuphantsi

- I-Bi directional tight shut-off ye-liquid ne-gas media

-Iinketho ezininzi zokhuseleko lwe-activator yokusilela ukhuseleko olukhuselekileyo

- Ukuxhathisa ukothuka koxinzelelo kunye nefuthe lehamile yamanzi ebangelwa kukutshintsha kokuhamba ngesiquphe

-Yenzelwe ukuvala umbhobho ozenzekelayo kunye nenkonzo yokulawula ukuhamba

IiNdawo zokuSebenza

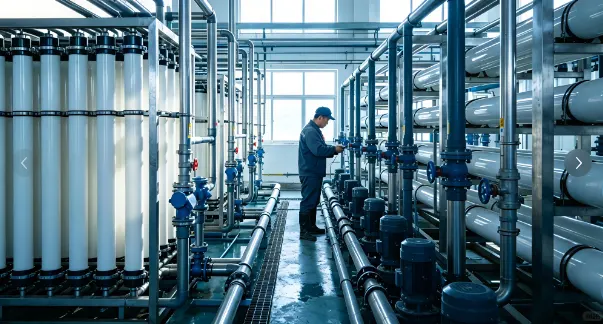

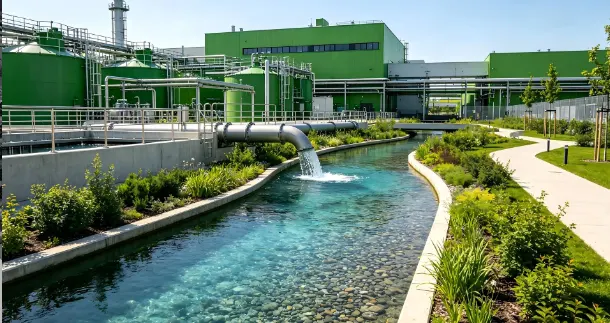

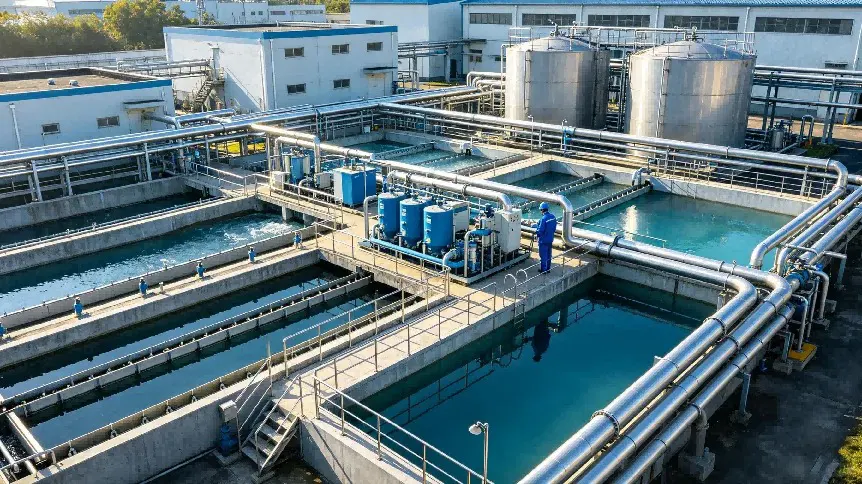

Ishishini lokucoca amanzi

IPneumatic Stainless Steel Flanged Ball Valve isetyenziswa kakhulu apha:

- Amaziko okucoca amanzi kamasipala azenzekelayo

- Imibhobho yolawulo oluzenzekelayo olujikelezayo yamanzi

- Iinkqubo ezincedisayo zokulungisa amanzi amdaka

- Amaqela evalve yokubonelela ngamanzi azenzekelayo

Ishishini leMichiza kunye neGesi yeOyile

- Imibhobho yenkqubo yeMichiza ezenzekelayo

- Iilophu zolawulo lwe-corrosive fluid

- Ukusetyenzwa kwerhasi ye-oyile imibhobho ezenzekelayo

-Iindawo ezinobungozi obuphezulu azinabungozi ekusebenzeni ngesandla

Ukusetyenziswa ngokubanzi kwimizi-mveliso

- Ulawulo lombhobho wemveliso oluzenzekelayo

-Iworkshop evaliweyo kunye neenkqubo zombhobho wobude obuphezulu

- Ukwakhiwa kwemibhobho emitsha ezenzekelayo kunye nokulungiswa kwezixhobo zesiza esidala

Umgangatho kunye neProjekthi yeNkxaso yokuFumana

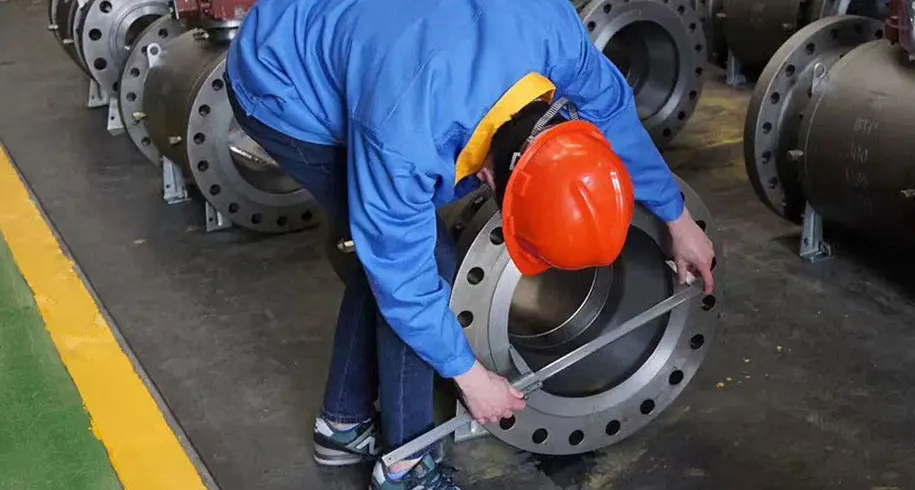

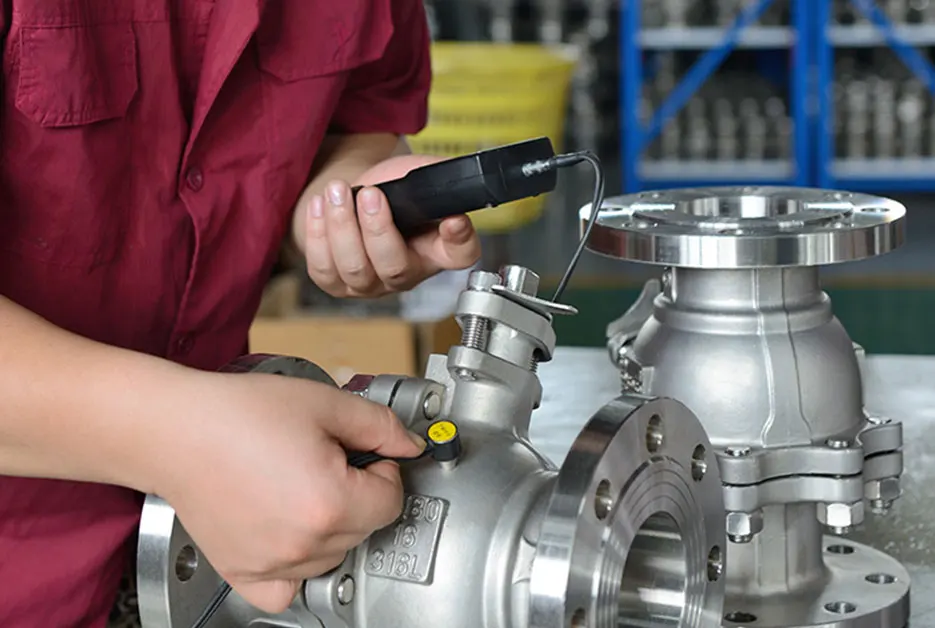

Njengomenzi wevalvu weshishini obambe i-CE, ISO kunye ne-API izatifikethi, yonke i-Pneumatic Stainless Steel Flanged Ball Valve ihamba kwiimvavanyo ezingqongqo zasefektri kubandakanya uvavanyo lokumelana noxinzelelo, uvavanyo lokutywinwa koxinzelelo lomoya kunye nokuhlolwa kwembonakalo. Inkqubo yethu epheleleyo yolawulo lomgangatho ibandakanya ukuhlolwa kwezinto ezikrwada, ukuchaneka komatshini, indibano yobuchwephesha kunye novavanyo olugqityiweyo lwemveliso. Iingxelo zovavanyo lwezinto eziphathekayo kunye namaxwebhu okuhlola anokunikezelwa kuphononongo lweprojekthi yaphesheya, ukubhida kunye nokwamkelwa kwesiza.

Sixhasa iinkonzo ezisebenzayo ze-OEM kunye ne-ODM ngokuhambelana nobushushu bokusebenza kwendawo, iimpawu eziphakathi kunye nemigangatho yemibhobho. Izinto ezinokwenziwa ngokwezifiso ziquka izinto zevalve, iklasi yoxinzelelo, izinto zokutywina kunye noqwalaselo lwe-actuator. I-MOQ eguquguqukayo ixhasa ii-odolo zesampulu zebhetshi ezincinci kunye nokuthengwa kobuninzi bobunjineli. IiValuvu zethu zePneumatic Stainless Stainless Flanged Ball zithunyelwa kumazwe angaphandle kwiimarike zehlabathi, ziphumelela ukwamkelwa okungaguqukiyo kunye nentsebenziswano yexesha elide evela kubathengi behlabathi.
